Brushless Motor - 6500KV (9x9 mounting)
+4
+3
+2

Brushless Motor - 6500KV (9x9 mounting)

SKU KCR-1106.6500
$42.00
Pre-order
Out of stock, available for pre-order
Product Details
UPC: KCR-1106.6500
Brand: KCRacing

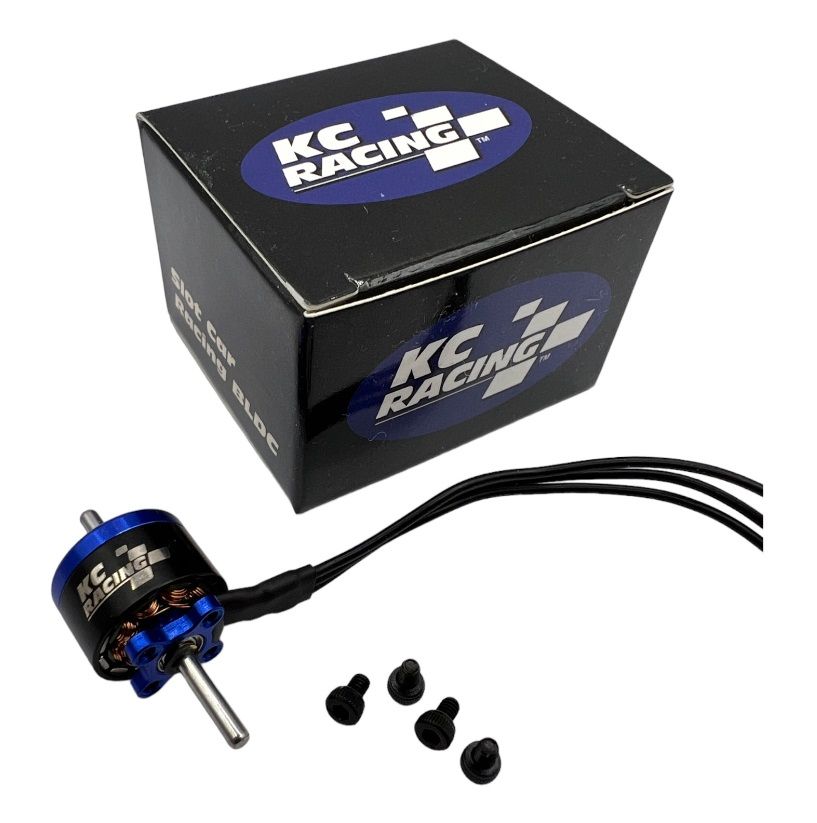

Brushless Motor (BLDC) for Slot Car - 6500KV (9x9 mounting)

Application - Road Course, not for drag racing

Join the brushless revolution in slot car racing. KC Racing has partnered with a world leading manufacturer of BLDC motors to develop an outrunner brushless motor specifically suited for slot car installations. Completely built and tested by the manufacturer this motor receives the rigorous testing of the factory to insure quality and consistency. Certifications of CE and ISO 9001:2015
  • Weight: 7.4g (including wires)
  • Motor Size: 14.3mm x 13.7mm
  • Stator Diameter: 11mm
  • Stator Height: 6mm
  • Pinion Shaft Diameter: 2.0mm x 10.00mm long
  • Minimum clearance for snap ring on pinion side: 5mm
  • Rotor Side Shaft Diameter: 2.00mm x 6.0mm long
  • Motor Mounting: 9mm x 9mm
  • Motor Cable: 26#AWG 115mm long
  • NSK Bearings
  • 7075-T6 Aluminum Bell
  • Multicolor color design
Volts - 16v
Temperature range - 0??- +80??C (32?? - +176??F)

RPM @ 12 vdc

6500 KV - 78,000 RPM

Includes four (4) M2x3mm Allen Head Cap Screws for mounting.
