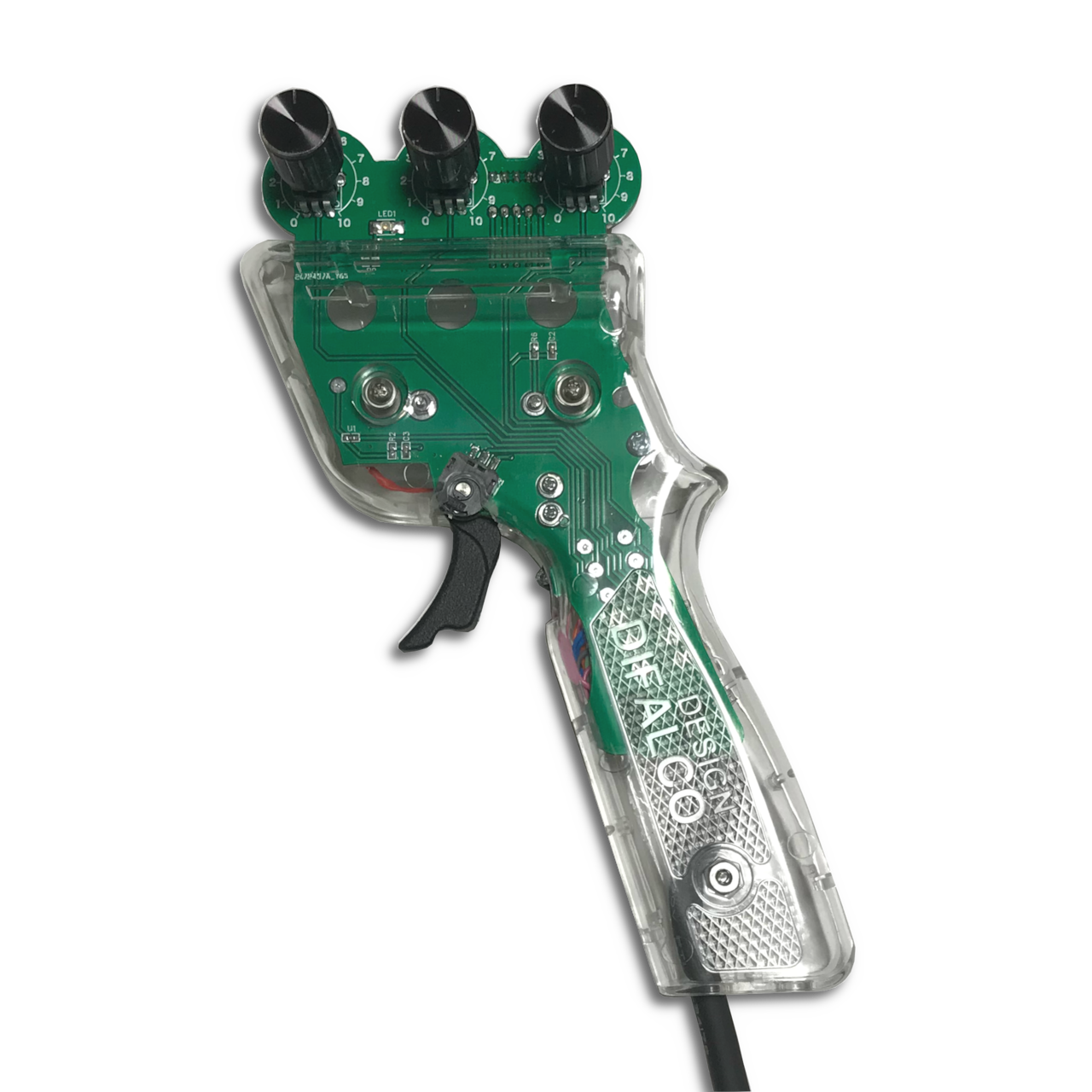

+One DFC-01SⅡ Slot Car Digital Competition Controller

The DFC-01SⅡ retains the same functions and performance as the DFC-01S compatible with almost all categories from 1/32 to 1/24.
Easy selection when you change track or car then fine tune braking, traction and sensitivity using the adjustment knobs.

PWM frequency, which is important for motor output characteristics, can be changed to match the motor and course layout (200 to 20,000Hz)

Operating Conditions

• Course layout: Positive polarity system
• Course connection: banana plug
• Operating voltage: 9 to 16V
• Handle: Difalco handle

Features

• Fully digitally controlled by 32-bit microcomputer and MosFET

• PWM frequency, which is important for motor output characteristics, can be changed to match the motor and course layout (200 to 20,000Hz)
• Uses a sensor for accelerator control, achieving maintenance
• -free wiper-less operation Sensor brake function that applies the brakes at the sensor position
• Traction control function that is effective on roads with poor grip
• Lightweight handle reduces fatigue even when used for long periods of time
• Equipped with a reverse connection protection circuit that minimizes electrical resistance loss

• Accelerator and brake are both PWM (Pulse Width Modulation) controlled by high-performance MosFET
