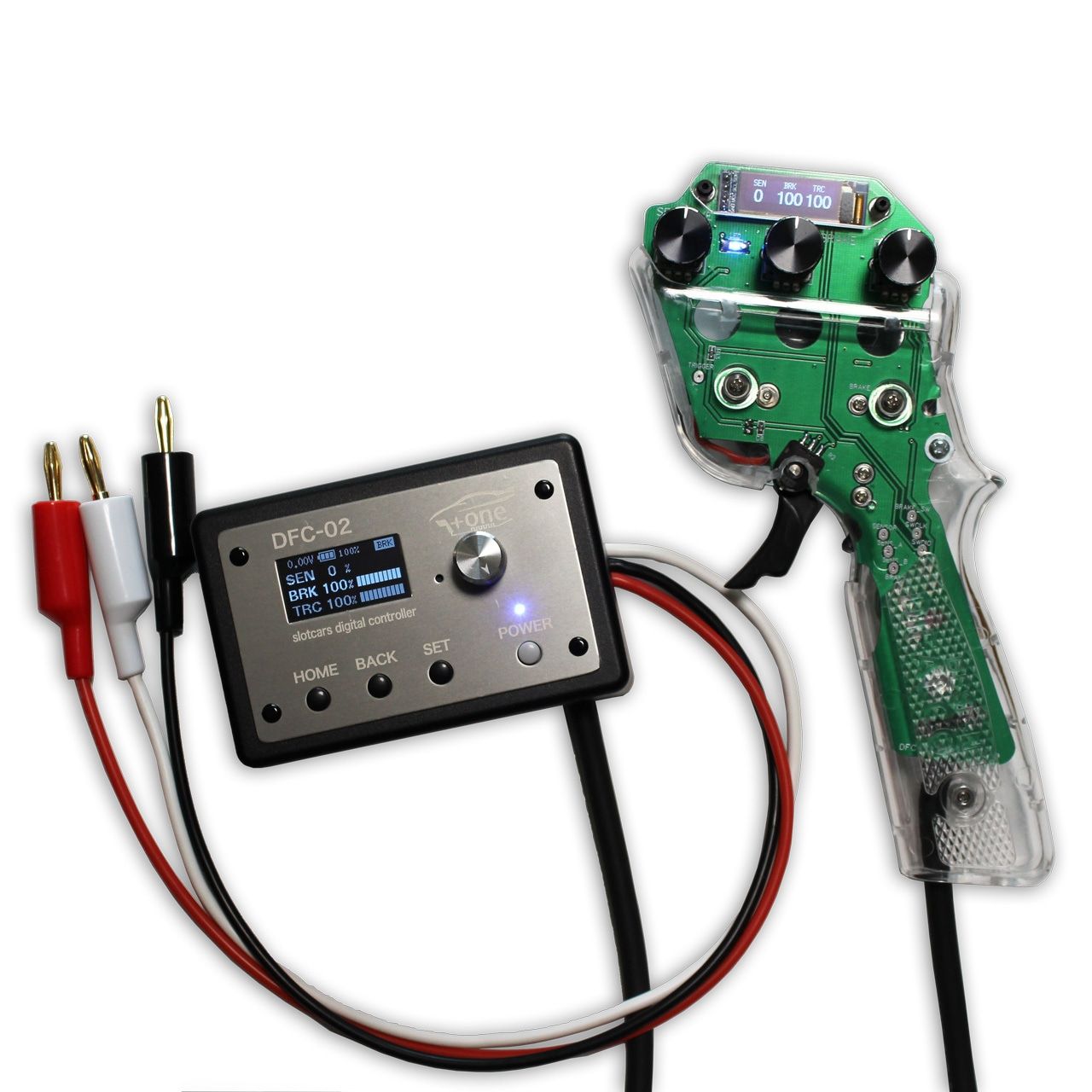

+One DFC-02 Slot Car Digital Competition Controller

The DFC-02 is a pure competition model that is compatible with almost all categories from 1/32 to 1/24. It is equipped with an OLED display, allowing for detailed settings.including recalling 24 track / car profiles for easy selection when you change track or car then fine tune using the adjustment knobs.

Update - 26/8/2024
The DFC-02 controller has been tested in Japan and found to work with up to brushless 6500KV and brushed Group12 motors.

Our early testing indicates the DFC-02 is stable to 9000KV, however the DFC-02 controller has a built-in resettable fuse should the ESC or higher KV motor die, i.e short circuit protection for the DFC-02 controller

Additional testing is underway with 17,500KV and 21,500KV brushless motors & controller boards ESC's available at the end of September 2024

Operating conditions

• Course layout: Positive polarity system
• Course connection: banana plug
• Operating voltage: 9 to 16V
• Rated current: Normally 8A Maximum 48A
• Handle: Difalco handle

Features

• Uses a high-performance 32-bit microcomputer, with a reaction speed of 1/1000th of a second for both the accelerator and brake.
• Equipped with an OLED display, the setting data is visualized numerically.
• Equipped with memory function for setting data (You can store 24 track / car profiles for easy selection when you change track or car)
• Equipped with a rechargeable battery, it is possible to check and change settings in the pit
• Equipped with predictive braking function Smart Brake
• The accelerator PWM frequency can be set to three variable frequencies, and the brake PWM frequency can also be changed.
• The range of traction control settings has been expanded to allow for more flexible response to course conditions.
• Wiper-less lightweight handle inherited from DFC-01
• Equipped with a reverse polarity protection circuit that minimizes electrical resistance loss
• Left-handed handle model available
