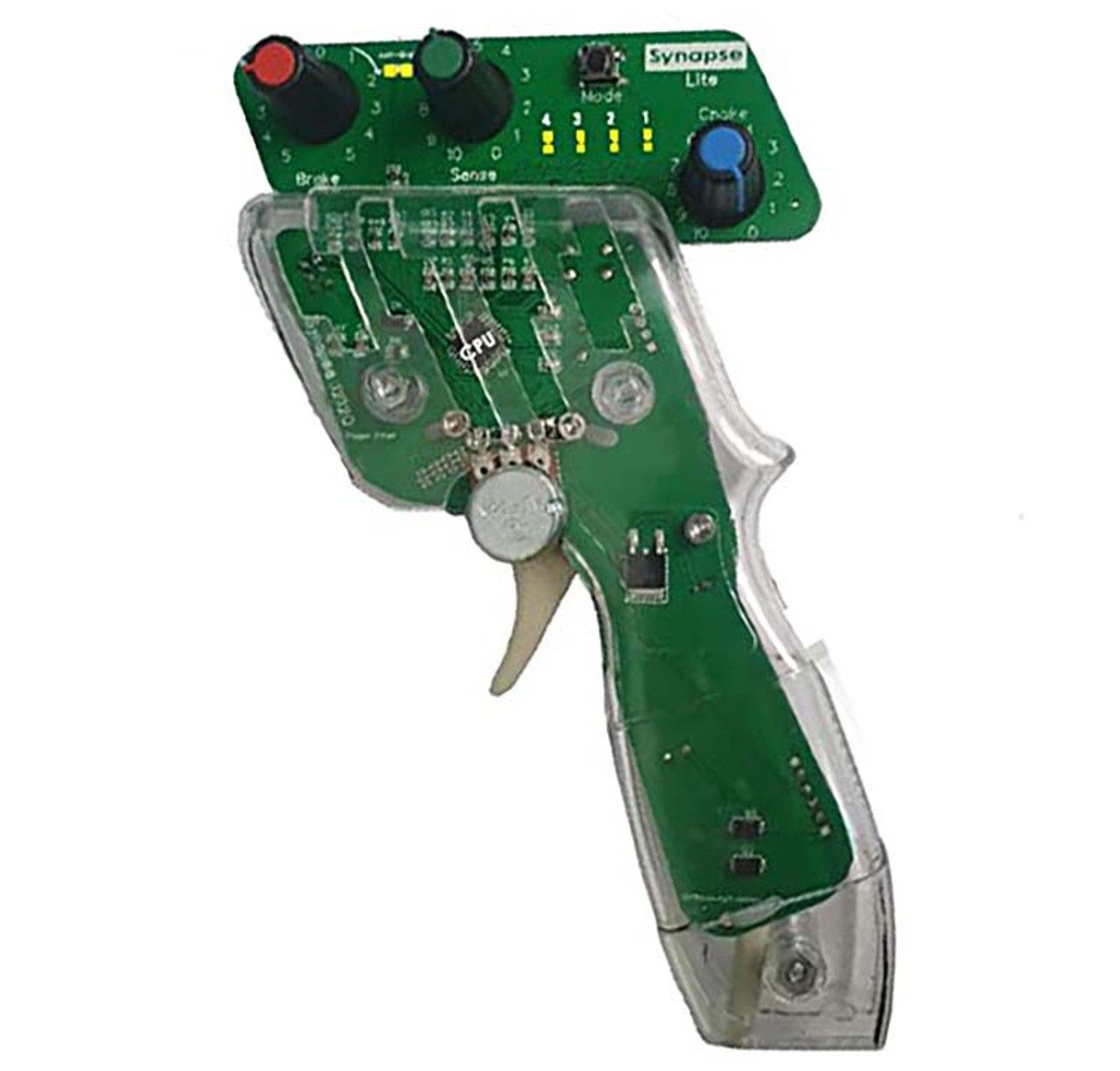

Synapse Lite Digital Computerized Controller

Synapse Lite Digital Computerized Controller - Compact and exceptionally light

Main features: .

• Managed by Digital Computerized System . Firmware update allowed for new features (requires USBasp connector adapter) .
• Setup Mode Bottom: 4 best curves choose for your best racings .
• Automatic Motor Recognition (1/32 and 1/24 scale) with autonomous feedback adjustment system .
• Adaptive Brake response with Anti-Brake integrated .
• Sensibility Pot .
• Choke Pot .
• Trigger travel adjusts - owner adjust .
• Compact and light box .
• Simply circuit board with High Tec power frame .
• Pad less trigger system for smooth drive experience . Lowest voltage drop 0.01v .
• Controller protected against faulty hook-ups .
• Ease maintenance with simple separate power replace frame .
• Worldwide track pin-out: White(+) Red(-) Black(track); . 12v to 16v input voltage range (minimum and maximum); .
• Fast recovery regulated voltage power supply (track); .
• Maximum HF noise 2vp-p; . Humidity 10% to 85% noncondensing; . Maximum load Drain 20 Amps constant 120 peak SYN-1001
